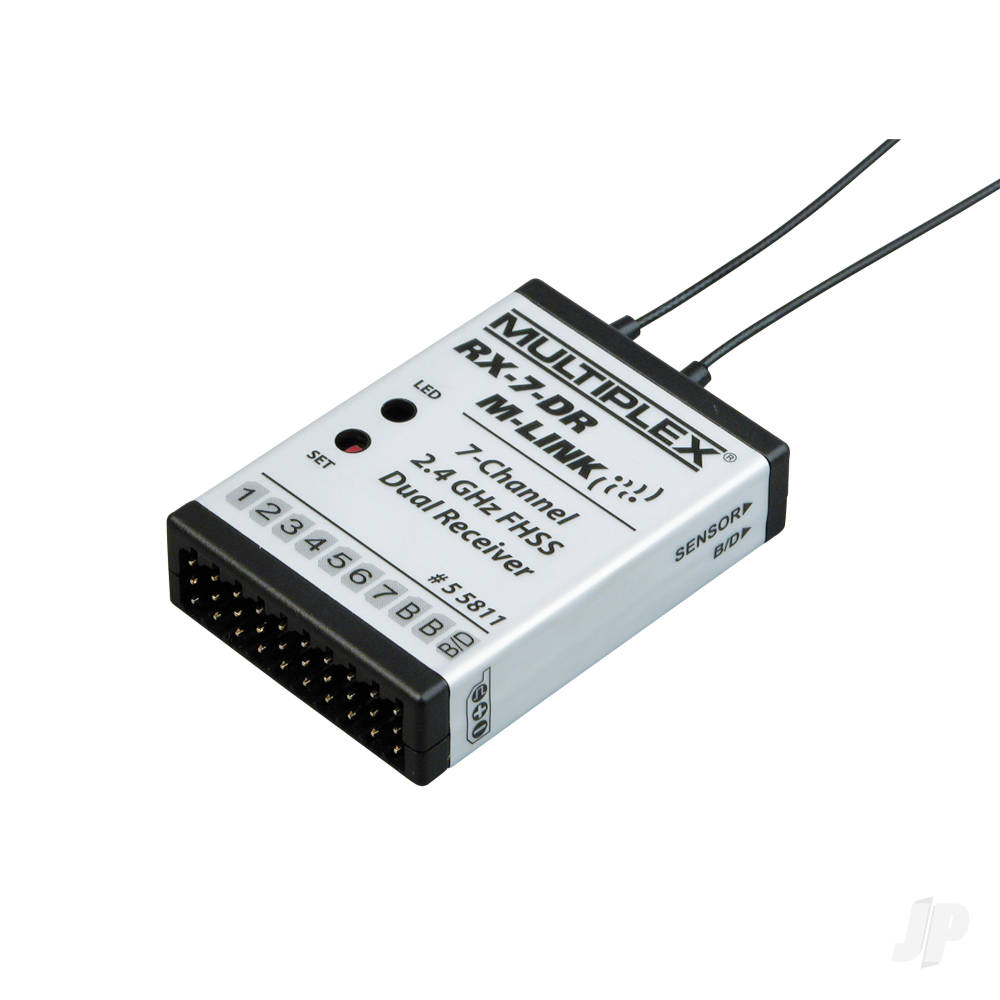

Receiver RX-7-Dr M-LINK 2.4GHz 55811
The RX-7-DR M-LINK is a compact 7-channel receiver with dual diversity and advanced SMD technology, ensuring excellent reception, maximum range, and suitability for models with tight installation spaces.
The RX-7-DR M-LINK is a compact 7-channel receiver with dual diversity and advanced SMD technology, ensuring excellent reception, maximum range, and suitability for models with tight installation spaces.
£ SRP
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local
Your local shop can get this next day.
Details
High-quality seven-channel / nine-channel receivers exploiting MULTIPLEX 2.4 GHz M-LINK technology. These receivers utilise the latest SMT construction, and are suitable for all types of model. Their compact dimensions and in-line connector arrangement allow them to fit even in models with limited internal space. These receivers feature two complete receiving circuits operating in parallel (receiver diversity). In conjunction with a special signal amplification circuit this ensures very high sensitivity, excellent reception quality and maximum effective system range.
- HOLD / FAIL-SAFE function
- Telemetry / Feedback channel capability
- Integral sensor interface for connecting external sensor modules (max. 16)
- Prepared for dual-receiver diversity operation (diversity lead # 8 5070 required)
- Integral error counter / data logger (voltage errors, signal errors)
- MULTImate compatible
- Integral PC interface
Specification
| Servo channel count: | 7 |
| Reception system: | 2.4 GHz FHSS |
| (Frequency Hopping Spread Spectrum) | |
| Operating voltage: | 3.5 V … 9.0 V |
| Power supply: | 4 - 5 NiXX cells, 2S LiPo / LiIo |
| Permissible operating temperature range: | - 20°C … + 55°C |
| Dimensions (L x W x H): | approx. 55 x 35 x 11,5 mm |
| Weight: | approx. 25 g |
