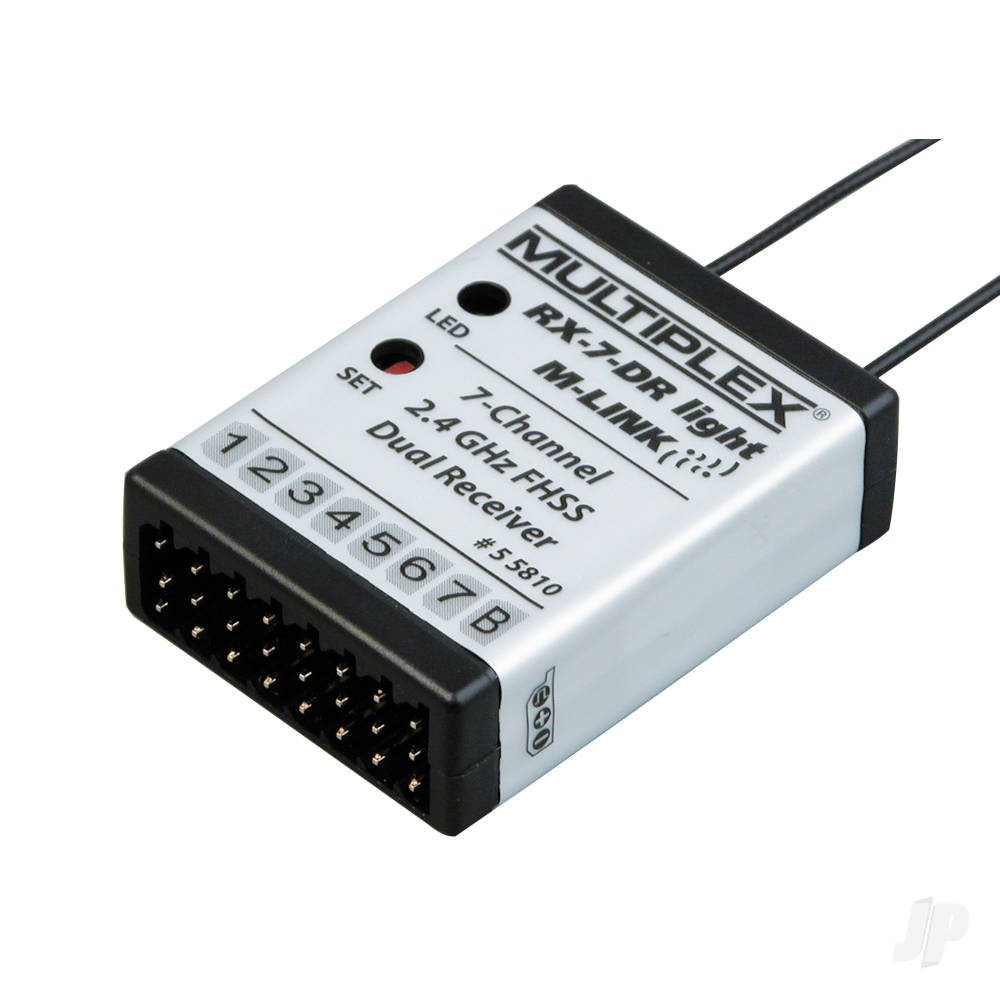

Receiver RX-7-Dr Light M-LINK 2.4GHz 55810
The RX-7-DR Light M-LINK is a compact 7-channel receiver with MULTIPLEX 2.4 GHz M-LINK technology. Its dual receiver diversity ensures excellent reception, making it ideal for smaller models and slim fuselages like F3B and F3J.
The RX-7-DR Light M-LINK is a compact 7-channel receiver with MULTIPLEX 2.4 GHz M-LINK technology. Its dual receiver diversity ensures excellent reception, making it ideal for smaller models and slim fuselages like F3B and F3J.
£ SRP
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local
Your local shop can get this next day.
Details
This is a small, all-purpose seven-channel receiver exploiting MULTIPLEX 2.4 GHz M-LINK technology. It is a dual receiver, featuring two complete receiving circuits operating in parallel (receiver diversity), ensuring excellent reception quality in spite of the unit's small dimensions.
The RX-7-DR light M-LINK is a particularly good choice for the smaller model as it is so light and compact. The in-line connector arrangement and compact case design make it suitable for installation in slim glider fuselages, e.g. F3B, F3J, …
- HOLD / FAIL-SAFE function
- Integral button and LED for Binding, FAIL-SAFE programming, RESET and operating status information Specification:
Servo channel count 7
Reception system 2.4 GHz FHSS
(Frequency Hopping Spread Spectrum)
Operating voltage 3.5 V … 9.0 V
Power supply 4 - 5 NiXX cells, 2S LiPo / LiIo
Permissible operating temperature range - 20°C … + 55°C
Dimensions (L x W x H) approx. 38 x 28 x 11,5 mm
Weight approx. 10 g
