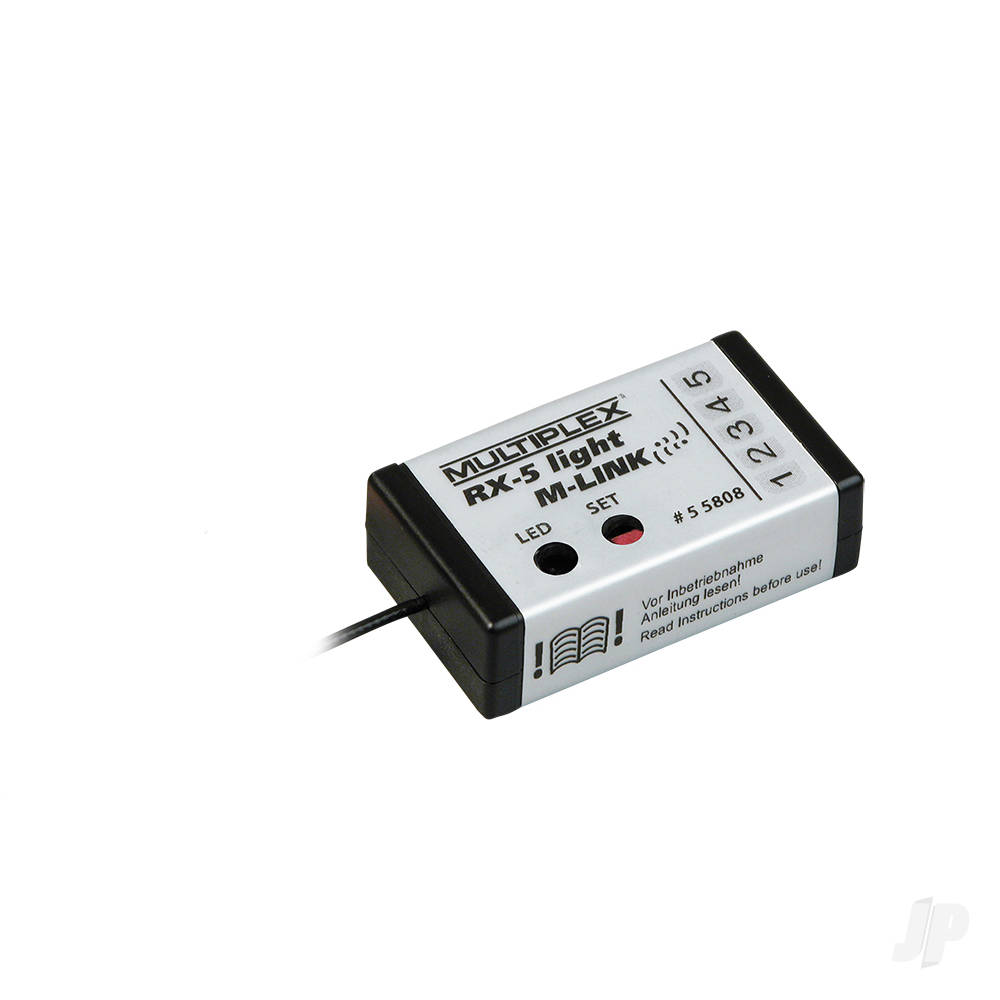

Receiver RX-5 Light M-LINK 2.4GHz 55808
Small and inexpensive 5-channel 2.4 GHz M-LINK receiver with UNI connector system. Due to the compact housing and the small dimensions in connection with the inline connector arrangement, it is particularly suitable for smaller models.
Small and inexpensive 5-channel 2.4 GHz M-LINK receiver with UNI connector system. Due to the compact housing and the small dimensions in connection with the inline connector arrangement, it is particularly suitable for smaller models.
£ SRP
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local
Your local shop can get this next day.
Details
Small, reasonably priced five-channel 2.4 GHz M-LINK receiver with the UNI connector system. A compact case and small dimensions in conjunction with in-line connectors make this unit ideal for the smaller model.
Typical applications:
- Model helicopters up to around 80 cm rotor diameter
- Electric and power models up to about 1.3 m wingspan
- Gliders and electric gliders up to about 2 m wingspan
- RC model cars
- RC model boatsThe plus-points:
- HOLD / FAIL-SAFE function
- Integral button and LED for: Binding, FAIL-SAFE programming, RESET, Operating status information
Specification
| Servo channel count: | 5 |
| Reception system: | 2.4 GHz FHSS (Frequency |
| Hopping Spread Spectrum) | |
| Operating voltage: | 3.5 … 9.0 V |
| Power supply: | 4 - 5 NiXX cells, 2S LiPo / LiIo |
| Operating temperature range: | -20°C … +55°C |
| Dimensions (L x W x H): | approx. 34 x 19.5 x 11 mm |
| Weight: | approx. 7 g |
