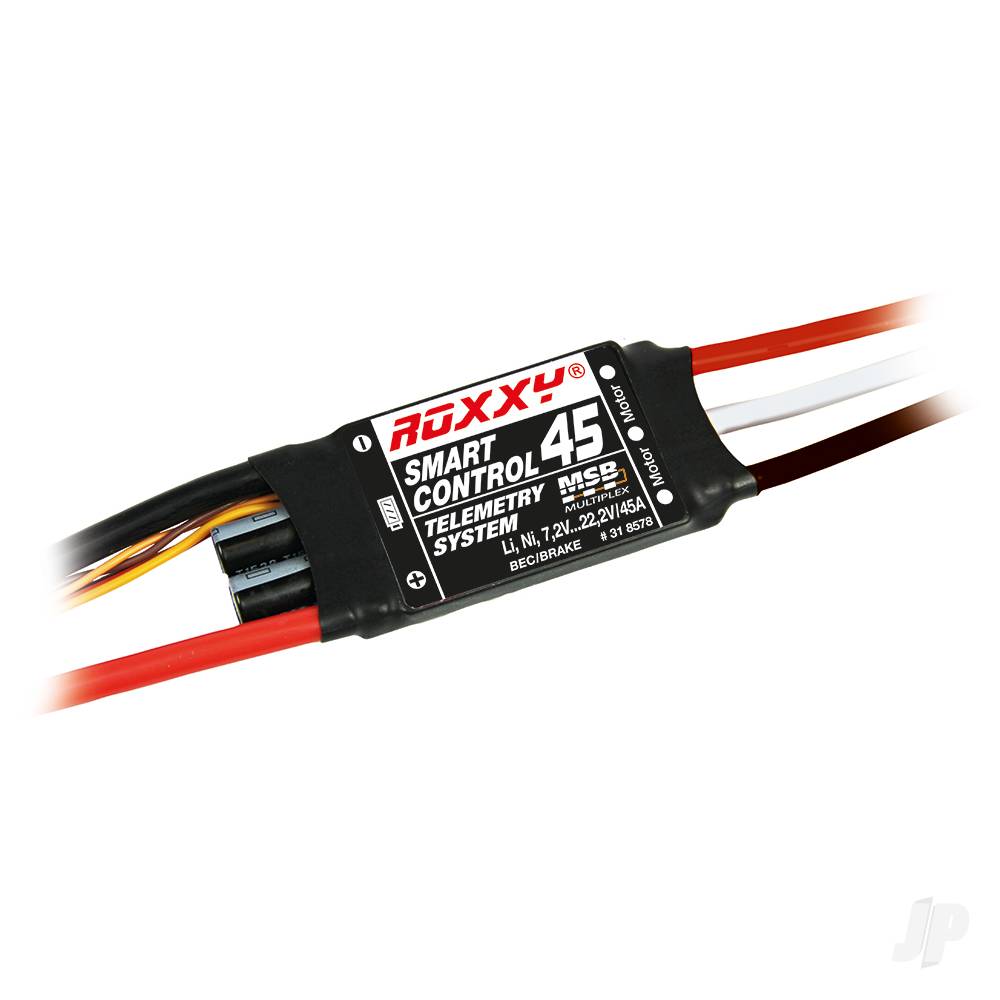

ROXXY SMART Control (45A)

Telemetry controller for Multiplex M-LINK transmission

Programmable 45 A ROXXY telemetry controller for brushless motors plus integratedsensors for MULTIPLEX M-LINK transmission. The simplest and most compact way to usetelemetry! Of course you can use the ROXXY Smart Control controller with any otherremote control system and set it very conveniently using the modern MULTIPLEX Launcher.Only the telemetry function is only possible with a MULTIPLEX M-LINK transmission.

Sensors for voltage, current, temperature, speed and capacity are permanently andcompactly integrated in these ROXXY Smart Control controllers. The data, processed andintegrated into the MSB telemetry system, make a significant contribution to theinformation provided to the RC pilot.

MSB is implemented in the ROXXY Smart Control controller series. Values determinedin the controller are looped directly into the MSB and displayed on the transmitter viaM-LINK.

Displayed are: current voltage, current and maximum current, current and maximumspeed, current temperature, capacity.

Warning thresholds and many other settings can be easily programmed using theMULTIPLEX Launcher. The following basic functions can also be operated via the sticksof the remote control: forwards, backwards, brake = on/off; NiXX/LiPo battery; andreset the capacity counter.

Programming options and telemetry:

• Battery type NiCd/LiPo
• Regulation voltage
• Type of control soft/hard
• Direction of rotation
• Run-up time (5 levels)
• Starting torque (5 levels)
• Timing
• Brake on/off
• Braking strength 4 levels
• Forward/reverse mode for boat and car
• Speed control mode for heli on/off
• Readjustment speed in governor mode
• Number of poled of the motor/gear reduction

Telemetry Alerts:

• Undervoltage limit
• Maximum current
• Temperature
• Capacity

Telemetry display:

• Current voltage
• Current and maximum current
• Current and maximum speed
• Current temperature
• Capacity
