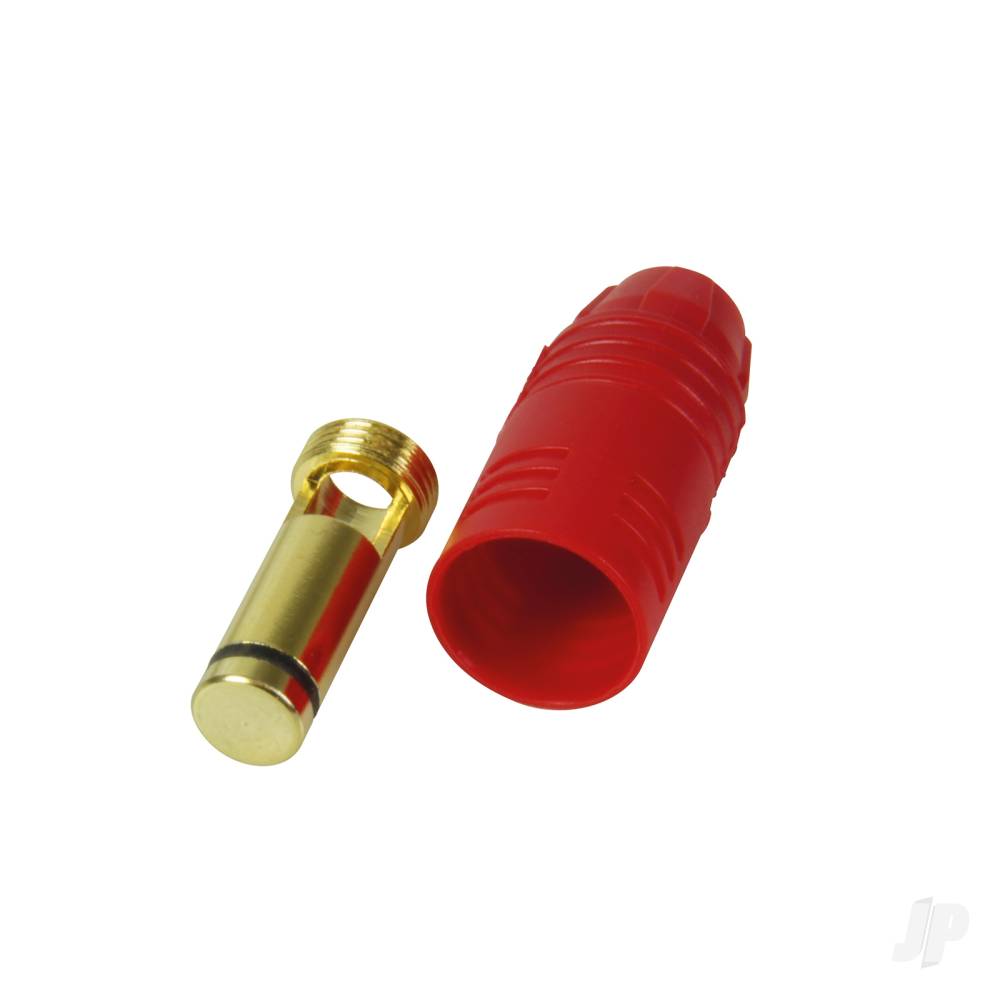

MPX-AS150 Male Plug, Red (2 pcs)
The 1-02304 MPX AS150 plug is a durable, fire-resistant connector with gold-coated contacts, anti-spark protection, and support for up to 500V DC and 150A short-term current.
The 1-02304 MPX AS150 plug is a durable, fire-resistant connector with gold-coated contacts, anti-spark protection, and support for up to 500V DC and 150A short-term current.
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local · Powered by LoveLocal
Your local shop can get this next day.
£ SRP
In stock Out of stock
Key Features
In the Box
What's included
You'll also need
Details
1-02304 MPX plug AS150 anti-lightning red The MPX AS150 connectors are very robust and easy to use. They are suitable for larger drives. The housing has a good grip and is injection-moulded from temperature-resistant polyamide, which is classified according to fire class UL94 V0. It is securely screwed onto the contact via a thread. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The solder connections of the AS150 contacts are designed for cables with a cross-section of up to approx. 13mm (AWG 6). This AS150 connector is equipped with an anti-lightning resistor, which suppresses sparking when the drive battery is connected to the ESC.
Specifications
- Brand
- Family
- SKU
