R7301SB 1-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest - High Gain Aerials

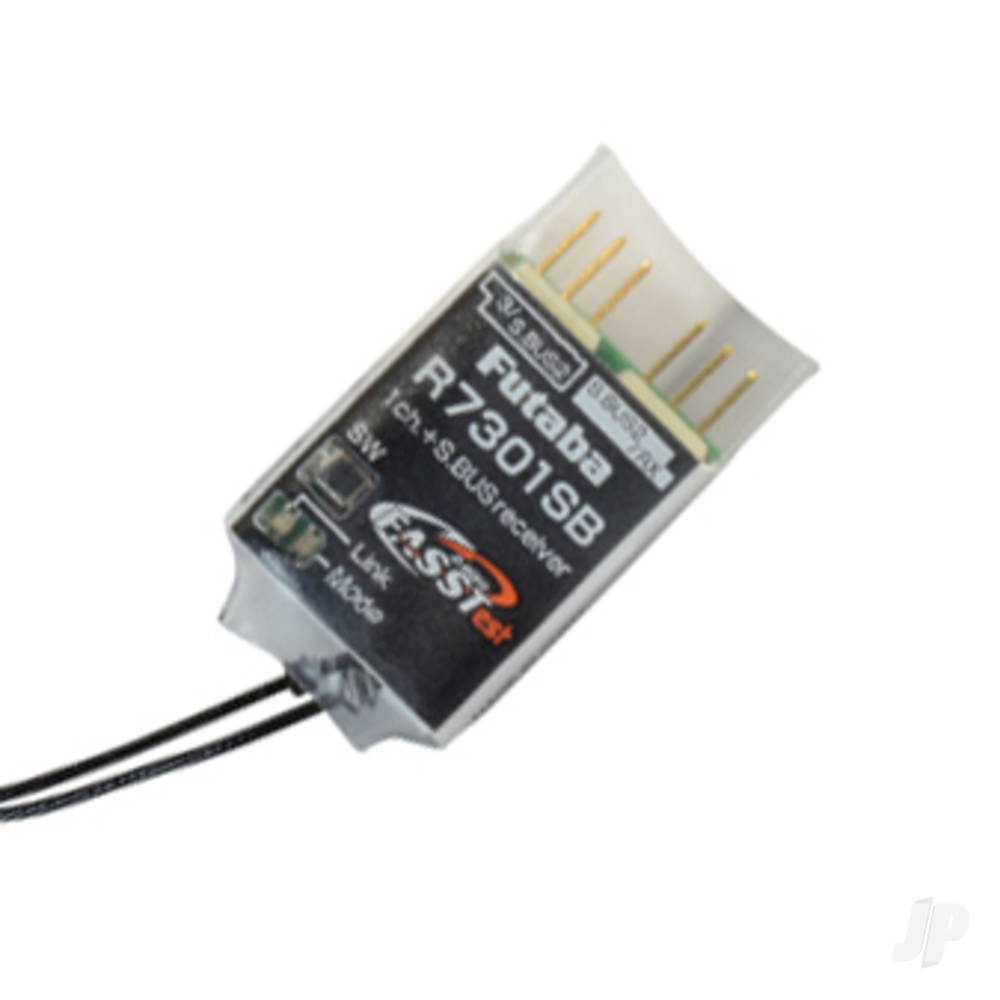

Futaba R7301SB Receiver

This receiver is recommended for aircraft which only require a receive funtion via the S.BUS connection.
As this is a small receiver, it also uses a dual Rc link system.
Also play an active role as a sub-receiver.

• FASSTest 2.4 GHz (26-Channel/18-Channel/12-Channel mode)
• S.BUS2 input/output/S.BUS output & classic system output (Channel 3)
• Equipped with Dual Rx Link System
• Antenna: diversity method, high-performance antenna
• Dimensions: 21.5 x 39.5 x 6.5 mm
• Weight: 6.0g
• Power supply: 3.7 - 7.4V (Dry cells cannot be used)
• Available voltage range: 3.5 - 8.4V
• F/S battery voltage: Set via transmitter
• Standard connection
