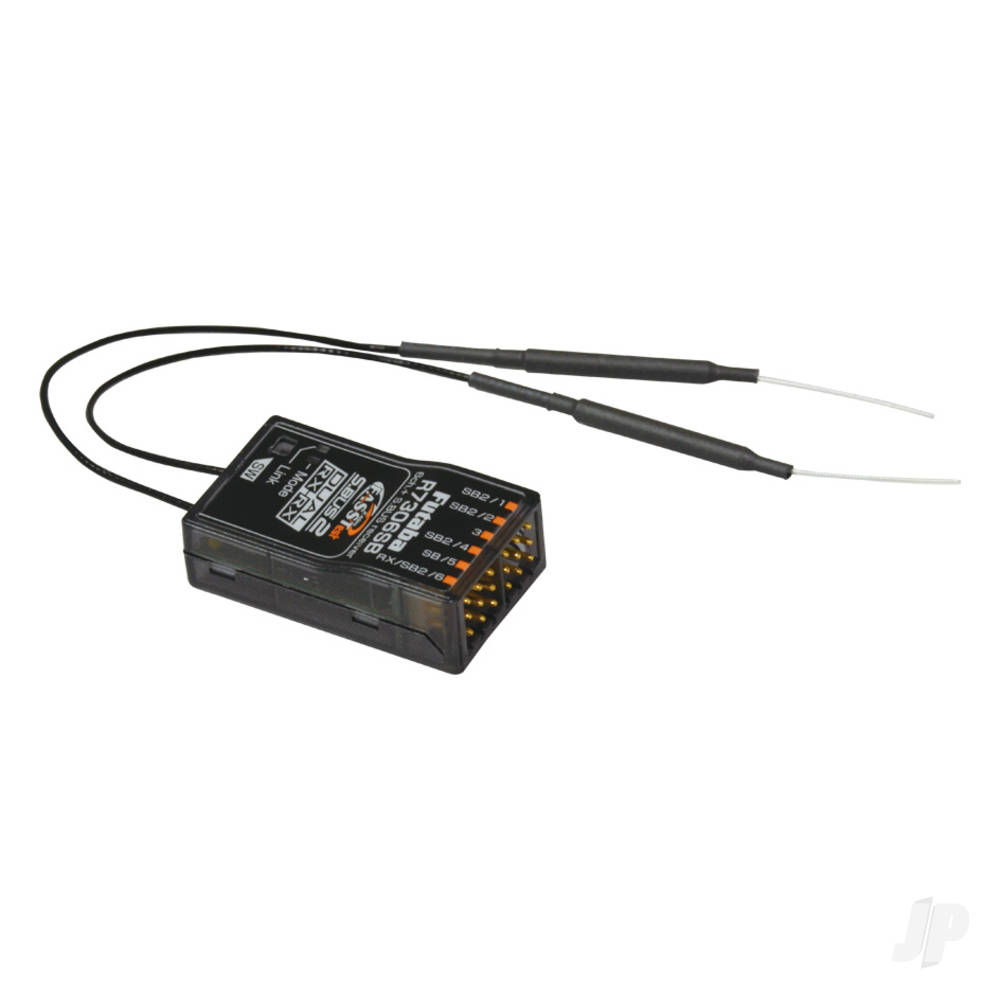

R7306SB 6-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest - High Gain Aerials

The Futaba R7306SB FASSTest-2.4GHz compatible receiver features bi-directional communication with a Futaba FASSTest transmitter using the S-BUS port. Using the S.BUS2 port an impressive array of telemetry sensors may be utilised. It also includes both standard PWM output ports (CH1-6) and S.BUS2 output ports. The R7306SB can also be switched to the Dual RX Link system – this system can ensure safety by mounting two FASSTest receivers in the same aircraft.

• FASSTest 2.4GHz system (18-channel/12-channel modes)
• Bi-Directional communication system
• Dual RX link system
• S.BUS2 and S.BUS port
• 6-Channels for conventional PWM systems
• Dual antenna diversity (High Gain Antenna)

Size:
38.3 x 22.5 x 12.2 mm
1.50 x 0.88 x 0.48 in

Weight:
9.8 g
0.34 oz

Power Requirement:
3.7 - 7.4V

Voltage Range:
3.5 - 8.4V

Battery F/S Voltage:
Set up with the transmitter
