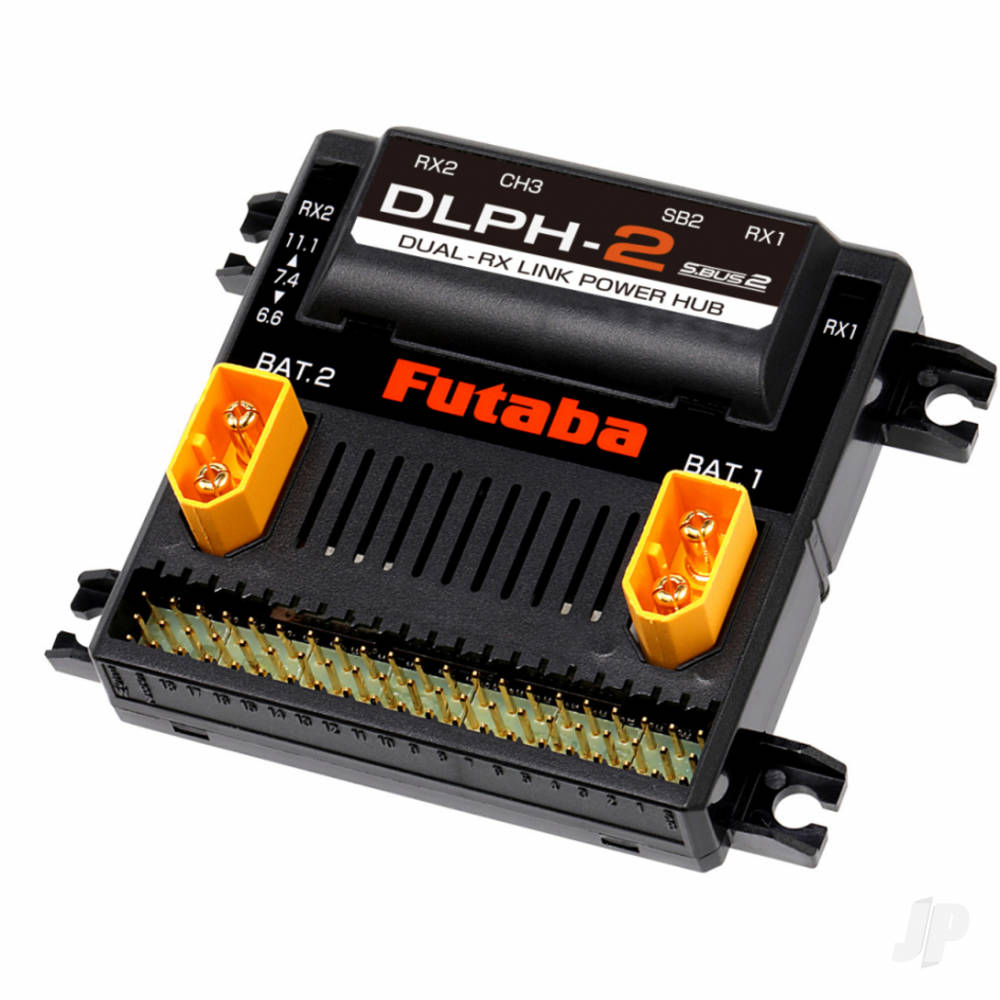

DLPH-2 18-Channel Dual Rx & Dual Battery Link Intelligent Power Hub

Futaba s second generation Dual (Rx) Link Power Hub (DLPH-2) is an intelligent device that allows dual receivers and dual batteries to be connected, offering both receiver and power supply backup to aircraft. In short, should one battery fail, or its voltage drop, power is supplied by the second pack. Similarly, if the main receiver loses its signal, the second receiver will seamlessly take over. This latest generation of the DLPH device includes an option to add Futaba s powerful GYA553 6-axis gyro using the S.Bus2 system. With the ability to PWM connect 18 high voltage, high performance servos and handle the attendant high current draw (up to 60A), the DLPH-2 is an all-in-one solution to managing the distribution of power, telemetry and current whilst supplying a stabilised voltage to your receivers and allowing them to do what they do best - maintain Futaba s rock-solid and dependable transmission link.

Compatible battery technologies include matched 2s LiFe and 2s / 3s LiPo packs, power being taken from the battery with the highest voltage, the system alternating between the two packs as respective voltages gradually drop. Of course, the system s telemetry sensor function constantly monitors and reports the battery voltage.
