Back to searchFutaba

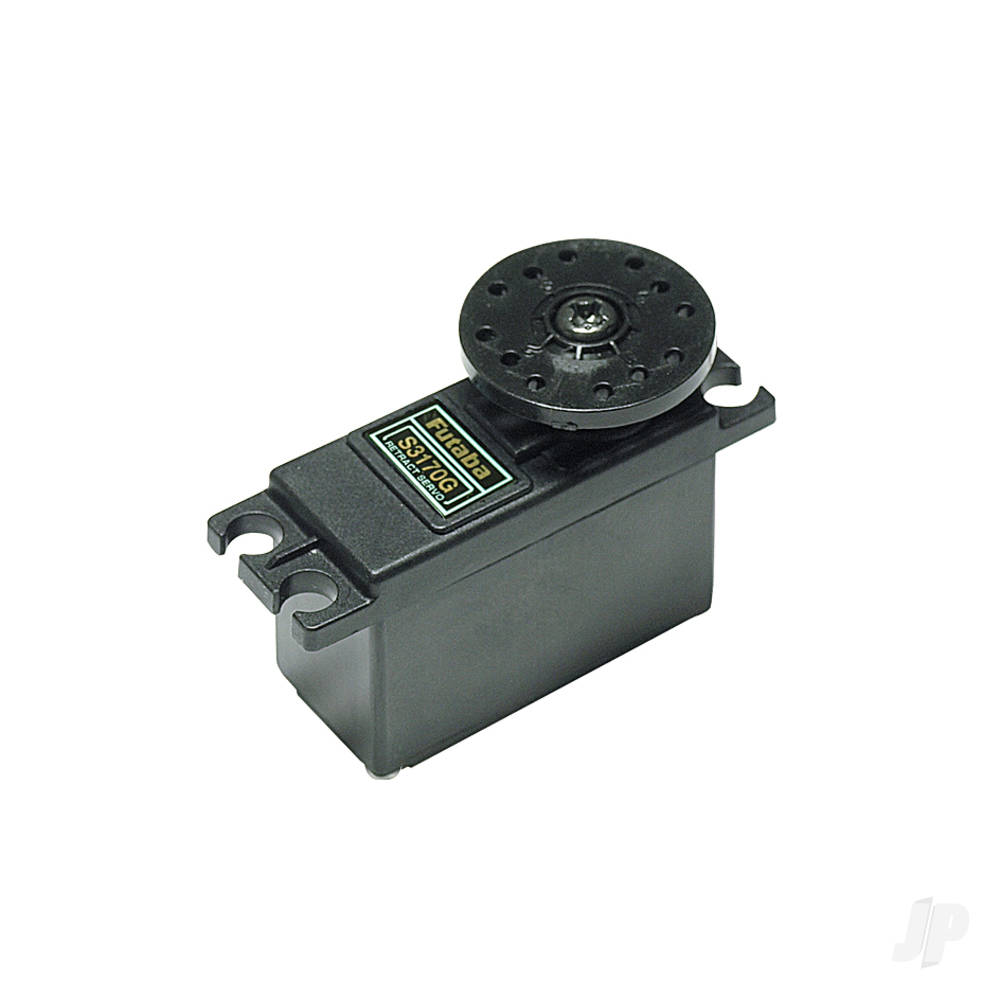

S3170G Mini Digital Retract Servo MG 8.5kg 0.47s 4.8V - 6V
The S3170G Mini Digital Retract Servo with metal gears provides 8.5kgfcm torque and 0.47s/60 speed at 6.0V. It measures 34.516.025.8mm, weighs 26g, and operates between 4.8V and 6.0V.
The S3170G Mini Digital Retract Servo with metal gears provides 8.5kgfcm torque and 0.47s/60 speed at 6.0V. It measures 34.516.025.8mm, weighs 26g, and operates between 4.8V and 6.0V.
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local · Powered by LoveLocal
Your local shop can get this next day.
£ SRP
In stock Out of stock
Key Features
In the Box
What's included
You'll also need
Details
S3170G– Standard Analog Airplane Retract Servo
Low Speed High Torque Metal Planetary Gear Servo
Use the horn set screw supplied with the sevo. Screw size: 3mm x 8mm.
Speed:
0.57 sec/60 (4.8V)
0.47 sec/60 (6.0V)
Torque:
7.0 kgf/cm (4.8V)
97.2 ozf/in (4.8V)
8.5 kgf/cm (6.0V
118.1 ozf/in (6.0V)
Size:
34.5 x 16 x 25.8 mm
1.36 x 0.63 x 1.02
Weight:
26 g
0.92 oz
Specifications
- Brand
- Family
- SKU
