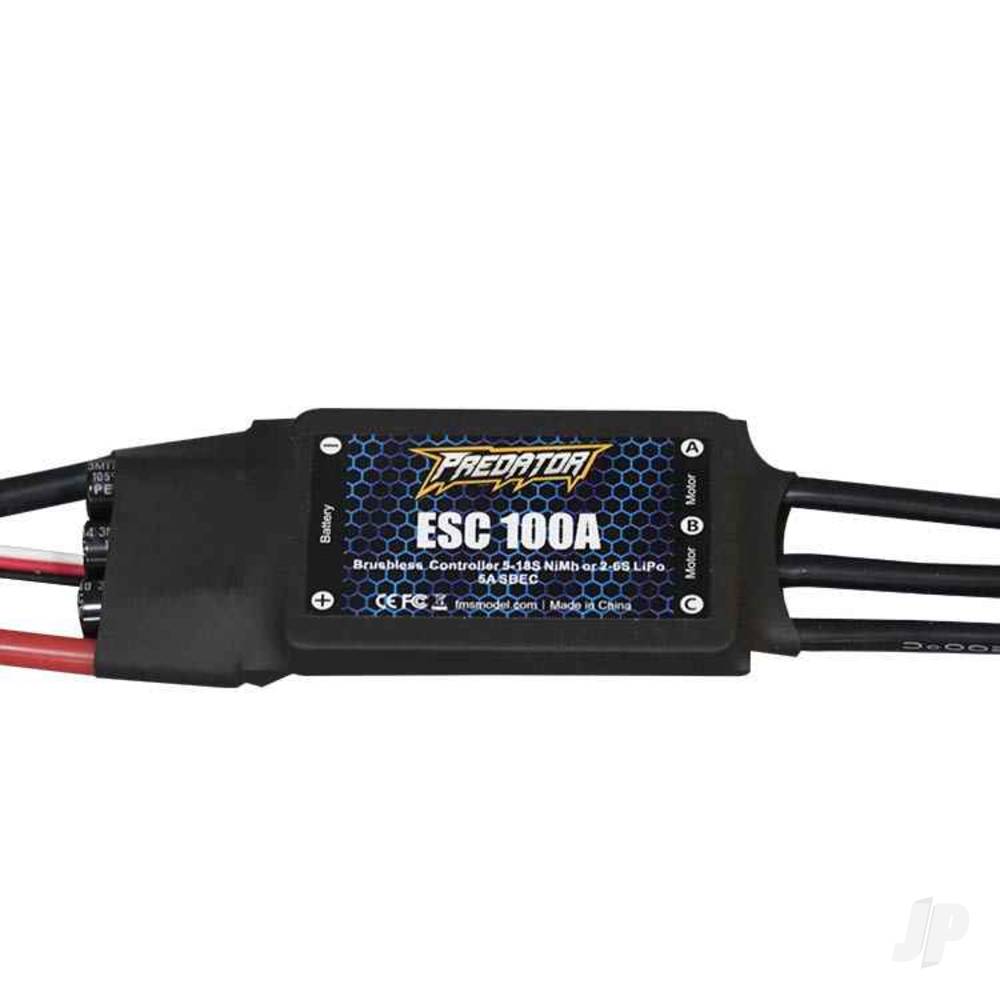

100A ESC With 300mm Input Cable (for 80mm F-4)

Model: 100A ESC

Cont Current: 100A

Peak Current: 120A

Input: 5-18s NiMH / 2-6S LiPo

BEC: Switch Mode 5V @ 5A

Size (LxWxH): 86 x 38 x 12mm

Weight: 82g

Programmable Features:

• Brake Setting: Enabled / Disabled
• Battery Type: LiPo / NiMH
• Low Voltage Protection Mode (Cut-Off Mode): Soft Cut Off (Gradually reduce the output power) / Cut-Off (Immediately stop the output power)
• Low Voltage Protection Threshold: Low / Medium / High
• Startup Mode: Normal / Soft / Super-Soft (300ms / 1.5s / 3s)
• Timing: Low / Medium / High (3.75 / 15 / 26.25)
