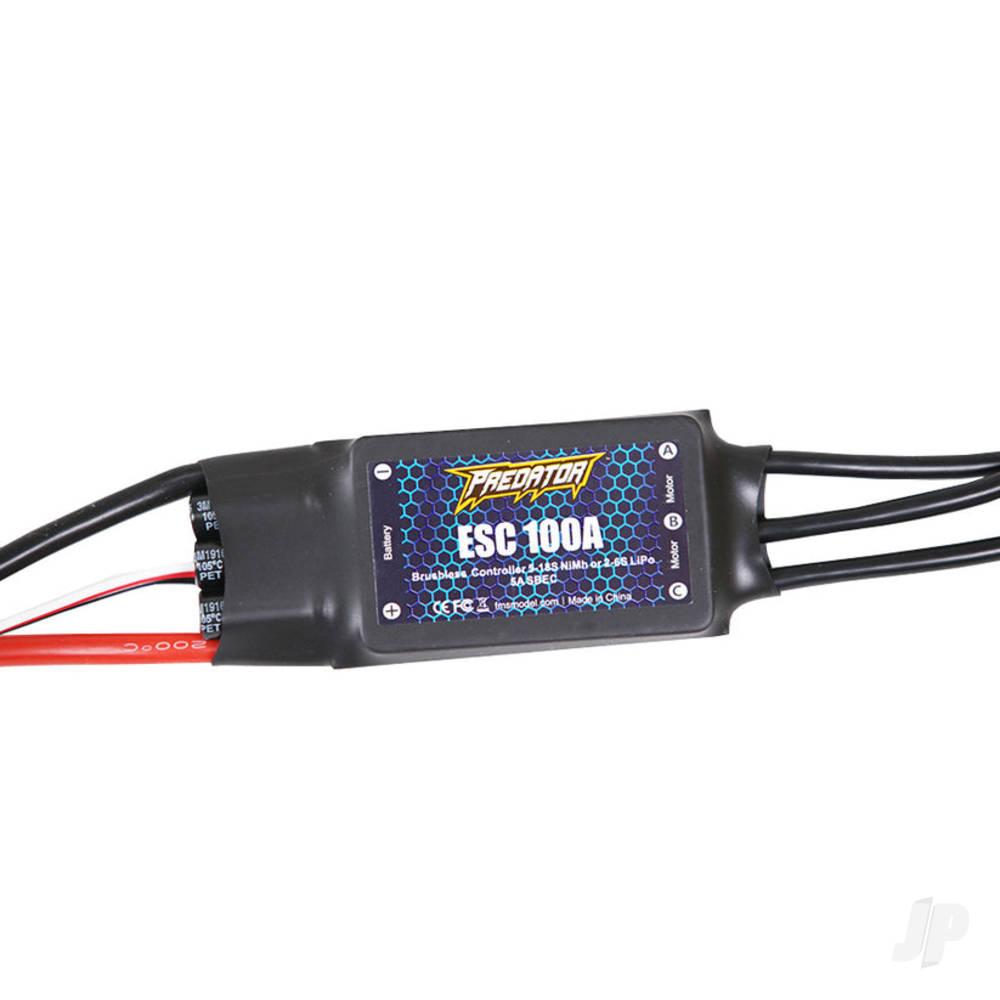

100A ESC With 300 Input Cable EC5 (for 80mm Futura V2 / 80mm BAE Hawk /80mm Rafale)
The 100A ESC is a high-performance electronic speed controller supporting 26S LiPo or 518S NiMH input, with a 5V 5A switch-mode BEC and a peak current of 120A. Compact and lightweight at 82g, it features programmable settings including brake, battery type, low voltage protection, startup mode and timing. Ideal for powerful RC setups requiring customisable, reliable control.
The 100A ESC is a high-performance electronic speed controller supporting 26S LiPo or 518S NiMH input, with a 5V 5A switch-mode BEC and a peak current of 120A. Compact and lightweight at 82g, it features programmable settings including brake, battery type, low voltage protection, startup mode and timing. Ideal for powerful RC setups requiring customisable, reliable control.
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local · Powered by LoveLocal
Your local shop can get this next day.
£ SRP
In stock Out of stock
Key Features
In the Box
What's included
You'll also need
Details
- Model: 100A ESC
- Cont current: 100A
- Peak current: 120A
- Input: 5-18s NiMH or 2-6S LiPo
- BEC: Switch mode 5V @ 5A
- Size (LxWxH): 86 x 38 x 12mm
- Weight: 82g
Programmable Items
- Brake Setting: Enabled / Disabled
- Battery Type: LiPo / NiMH
- Low Voltage Protection Mode (Cut-Off Mode): Soft Cut-Off (Gradually reduce the output power) / Cut-Off (Immediately stop the output power)
- Low Voltage Protection Threshold (Cut-Off Threshold): Low / Medium / High
- Startup Mode: Normal / Soft / Super-Soft (300ms / 1.5s / 3s)
- Timing: Low / Medium / High (3.75 / 15 / 26.25)
