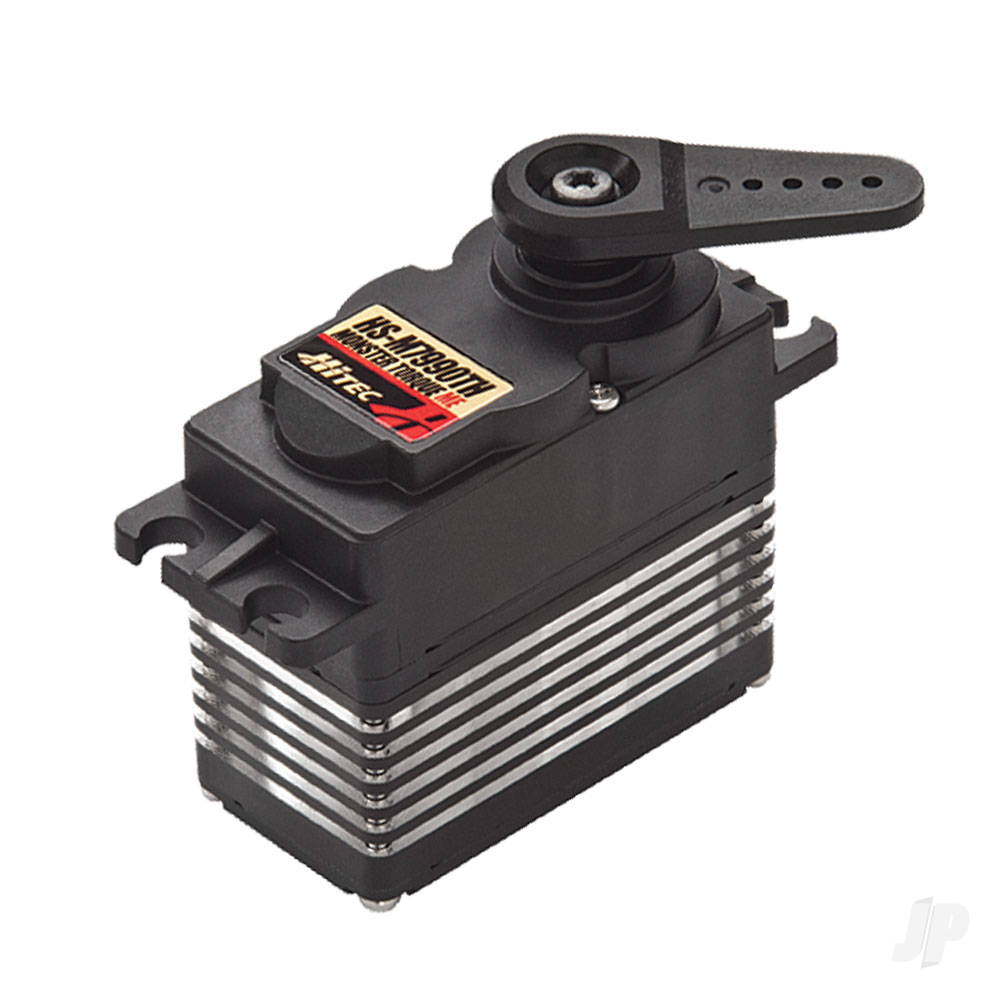

HS-M7990TH Standard Digital Coreless Servo 79g 44kg/0.17s 6.0V - 7.4V
The HS-M7990TH is Hitec's most advanced servo, featuring an ultra-precise magnetic encoder, G2.5 12-bit programmable circuit, and indestructible titanium gears. optimised for 7.4V 2S LiPo operation, it includes a coreless motor, integrated heat sink, and reinforced steel gear pins for maximum durability.
The HS-M7990TH is Hitec's most advanced servo, featuring an ultra-precise magnetic encoder, G2.5 12-bit programmable circuit, and indestructible titanium gears. optimised for 7.4V 2S LiPo operation, it includes a coreless motor, integrated heat sink, and reinforced steel gear pins for maximum durability.
£ SRP
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local
Your local shop can get this next day.
Details
Specification:
| Torque (kg.cm): | 36.0 at 6V / 44.0 at 7.4V |
| Speed (sec/60deg): | 0.21 at 6V / 0.17 at 7.4V |
| Weight (g): | 79.0 |
| Dimensions (mm): | 43.8 x 22.4 x 40 |
Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Overload Protection* (default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
